Beschrijving

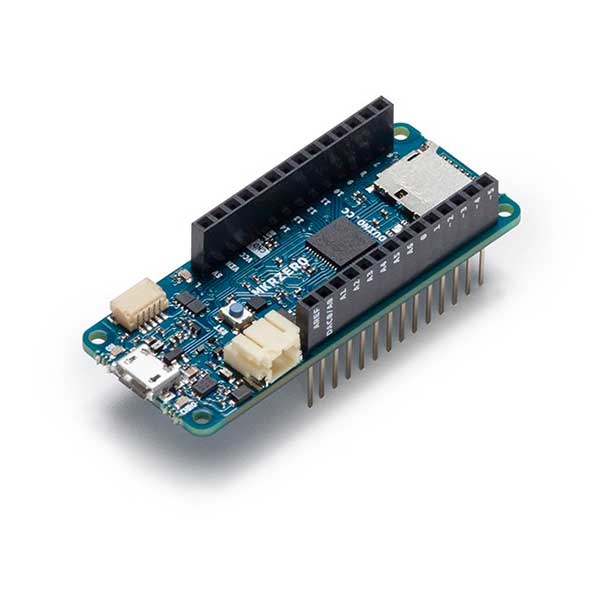

Arduino MKR Zero geeft de kracht van de Arduino zero in de MKR form factor. Een development bord voor 32bit applicatie development. Heeft een onboard SD connector met SPI interface(SPI1), ideaal om muziek bestanden te spelen, zonder extra hardware. Het bord is op basis van de Atmel SAMD21 MCU met een 32-bit ARM Cortex® M0+ core.
Het bord is compleet om direct te beginnen. Direct met een computer te verbinden met een micro USB kabel. Kan ook gevoed worden met een LiPo batterij en deze is verbonden met de analoge converter, waardoor het mogelijk is het batterij level te meten is.
The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it by a LiPo battery. The battery voltage can also be monitored since a connection between the battery and the analog converter of the board exists.
Arduino MKR Zero specificaties:
– Microcontroller: SAMD21 Cortex-M0+ 32bit low power ARM MCU
– Board Power Supply (USB/VIN): 5V
– Supported Battery: Li-Po single cell, 3.7V, 700mAh minimum
– DC Current for 3.3V Pin: 600mA
– DC Current for 5V Pin: 600mA
– Circuit Operating Voltage: 3.3V
– Digital I/O Pins: 22
– PWM Pins: 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 – or 18 -, A4 -or 19)
– 1 UART
– 1 SPI
– 1 I2C
– Analog Input Pins: 7 (ADC 8/10/12 bit)
– Analog Output Pins: 1 (DAC 10 bit)
– External Interrupts: 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 – or 17)
– DC Current per I/O Pin: 7 mA
– Flash Memory: 256 KB
– Flash Memory for Bootloader: 8 KB
– SRAM: 32 KB
– EEPROM: no
– Clock Speed: 32.768 kHz (RTC), 48 MHz
– LED_BUILTIN: 32
– Full-Speed USB Device and embedded Host
– Handleiding
ABX00012
