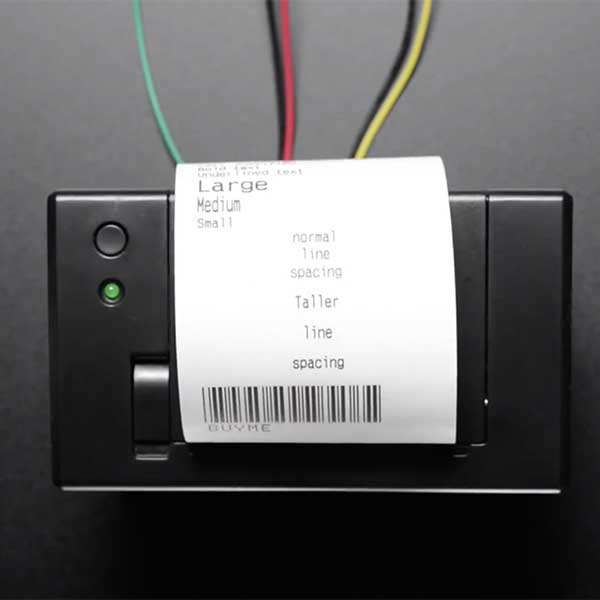

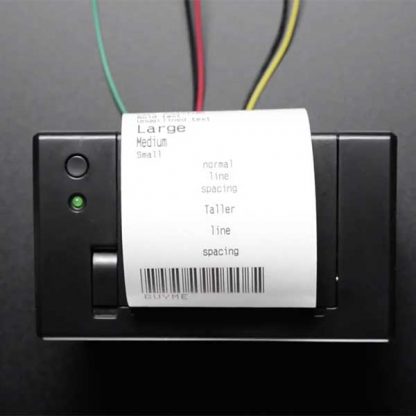

Mini thermal bon printer

Beschrijving

Mini thermal bon printer ook wel bekend als bon of pos printer. Nu eenvoudig aan een project toe te voegen. Ideaal om te communiceren met een microcontroller om text, barcodes of QR codes te printen.

Handleiding

Mini thermal bon printer specificaties:
– Requires 2.25″ wide, 50 ft or shorter thermal paper
– Requires 5-9VDC @ 1.5Amp power supply during print
– Printing Speed: 50-80mm/s
– Resolution: 8 dots/mm, 384 dots/line
– Effective Printing Width: 48mm
– Character Set: ASCII,GB2312-80(Chinese)
– Print Font: ANK:5×7, Chinese: 12×24,24×24
– Paper Type: Thermal paper
– Paper Width: 57.5 ±0.5mm
– Paper Roll Diameter: max 39mm
– Protocol: TTL Serial, 19200 baud
– Mean Cycles Before Failure: 5 million lines
– Power Supply (Adapter): DC5V-9V
– Outline Dimension (WxDxH): 111x65x57mm
– Installation Port Size: 103 x 57mm
– Color: Black
– Operating Temp: 5°C ~ 50°C
– Operating Humidity: 10% ~ 80%
– Storage Temp: -20°C ~ 60°C
– Storage Humidity: 10% ~ 90%
– Screws: M2.5
