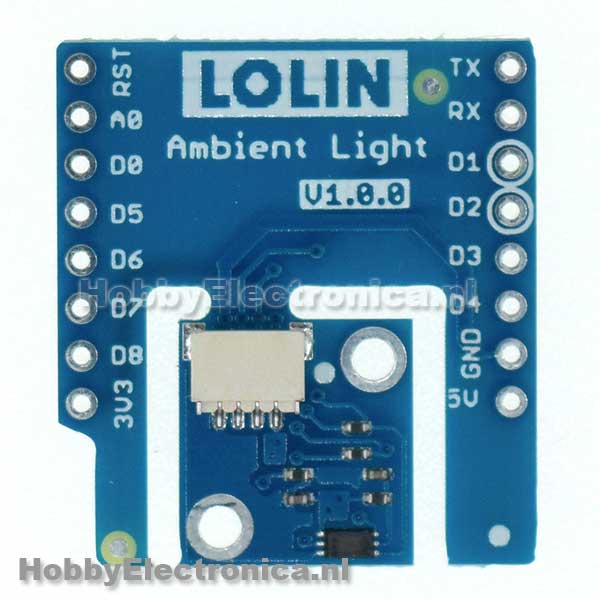

Ambient light shield

3,45

10 op voorraad

SKU: HE0848-915 Categorieën: , Tags: , , , Verzenden:

Beschrijving

Ambient light shield meet de sterkte van het omgevingslicht. I2C Interface digitale verlichtingssensor gebaseerd op de BH1750FVI chip. Deze sensor kan de lichtintensiteit meten tussen 0 en 65535 Lux (L).

Ambient light shield specificaties:
– I2C-interface

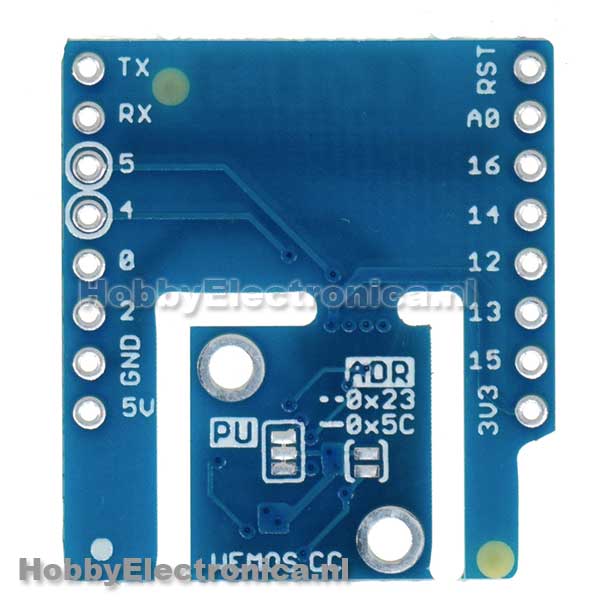

– Twee te selecteren I2C adressen
– BH1750FVI Verlichtingssterkte naar digitaal converter
– Breed bereik en hoge resolutie. (1-65535 lx)
– 2mm bevestigings gaten
Arduino library

D1 mini GPIO Shield
D1 5 SCL
D2 4 SDA

Arduino code voorbeeld:

Installeer de library: https://github.com/claws/BH1750

Dubbel klik het code block om alles te selecteren en eenvoudig te kopieren.

#include <Wire.h>
#include <BH1750.h>

/*
  BH1750 can be physically configured to use two I2C addresses:
    - 0x23 (most common) (if ADD pin had < 0.7VCC voltage)
    - 0x5C (if ADD pin had > 0.7VCC voltage)
  Library uses 0x23 address as default, but you can define any other address.
  If you had troubles with default value - try to change it to 0x5C.
*/
BH1750 lightMeter(0x23);

void setup(){

  Serial.begin(9600);

  // Initialize the I2C bus (BH1750 library doesn't do this automatically)
  Wire.begin();
  // On esp8266 you can select SCL and SDA pins using Wire.begin(D4, D3);

  /*
    BH1750 has six different measurement modes. They are divided in two groups;
    continuous and one-time measurements. In continuous mode, sensor continuously
    measures lightness value. In one-time mode the sensor makes only one
    measurement and then goes into Power Down mode.
    Each mode, has three different precisions:
      - Low Resolution Mode - (4 lx precision, 16ms measurement time)
      - High Resolution Mode - (1 lx precision, 120ms measurement time)
      - High Resolution Mode 2 - (0.5 lx precision, 120ms measurement time)
    By default, the library uses Continuous High Resolution Mode, but you can
    set any other mode, by passing it to BH1750.begin() or BH1750.configure()
    functions.
    [!] Remember, if you use One-Time mode, your sensor will go to Power Down
    mode each time, when it completes a measurement and you've read it.
    Full mode list:
      BH1750_CONTINUOUS_LOW_RES_MODE
      BH1750_CONTINUOUS_HIGH_RES_MODE (default)
      BH1750_CONTINUOUS_HIGH_RES_MODE_2
      BH1750_ONE_TIME_LOW_RES_MODE
      BH1750_ONE_TIME_HIGH_RES_MODE
      BH1750_ONE_TIME_HIGH_RES_MODE_2
  */

  // begin returns a boolean that can be used to detect setup problems.
  if (lightMeter.begin(BH1750::CONTINUOUS_HIGH_RES_MODE)) {
    Serial.println(F("BH1750 Advanced begin"));
  }
  else {
    Serial.println(F("Error initialising BH1750"));
  }

}


void loop() {

  uint16_t lux = lightMeter.readLightLevel();
  Serial.print("Light: ");
  Serial.print(lux);
  Serial.println(" lx");
  delay(1000);

}
